How to Block Microsoft Windows updates using App Control Advanced

10/14/2021 239 People found this article helpful 206,860 Views

Download

Print

Share

• LinkedIn
• Twitter
• Facebook
• Email
• Copy URL The link has been copied to clipboard

Description

How to Block Microsoft Windows updates using App Control Advanced

Resolution

Resolution for SonicOS 7.X

This release includes significant user interface changes and many new features that are different from the SonicOS 6.5 and earlier firmware. The below resolution is for customers using SonicOS 7.X firmware.

Feature/Application:

Block Microsoft Windows Updates using Application Control Advanced

Procedure:

Login to the SonicWall Management GUI.

Navigate to Policy> Security services > Advanced Application Control.

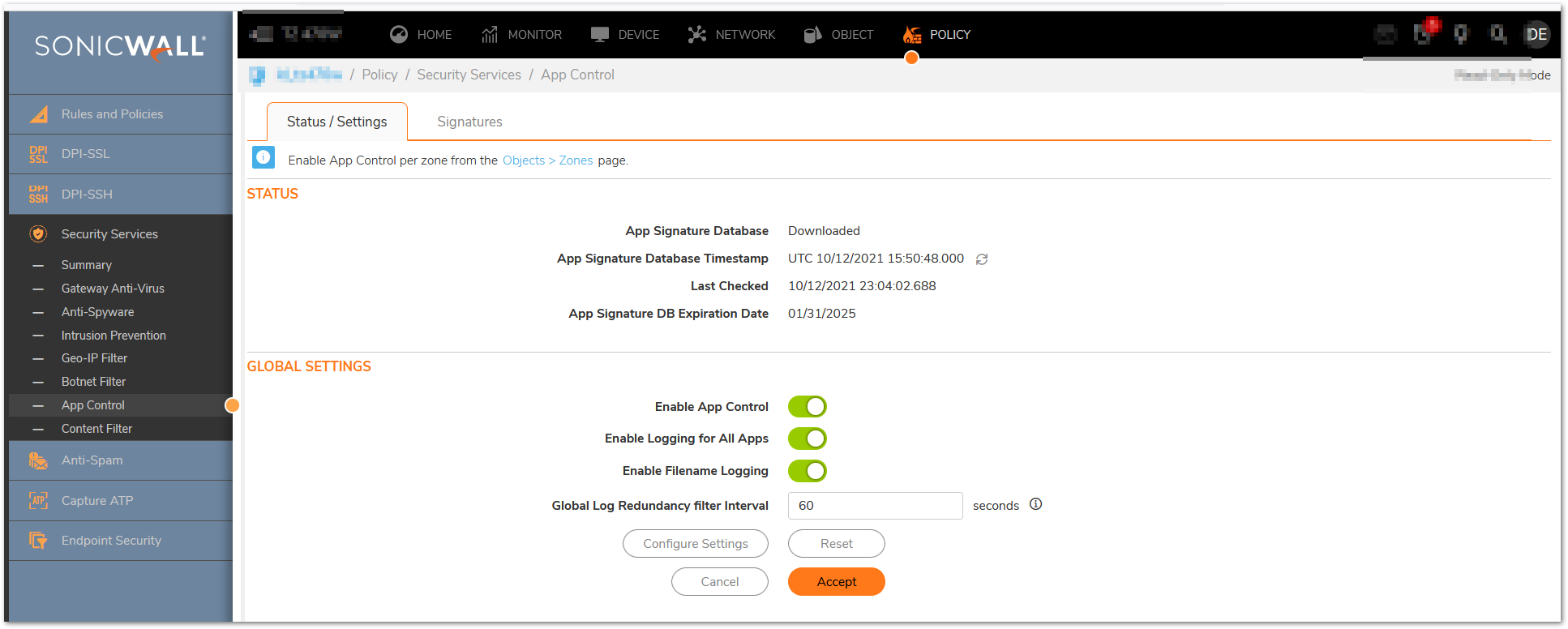

Check the box under Enable App Control  and click on the Accept button at the bottom to enable App Control.

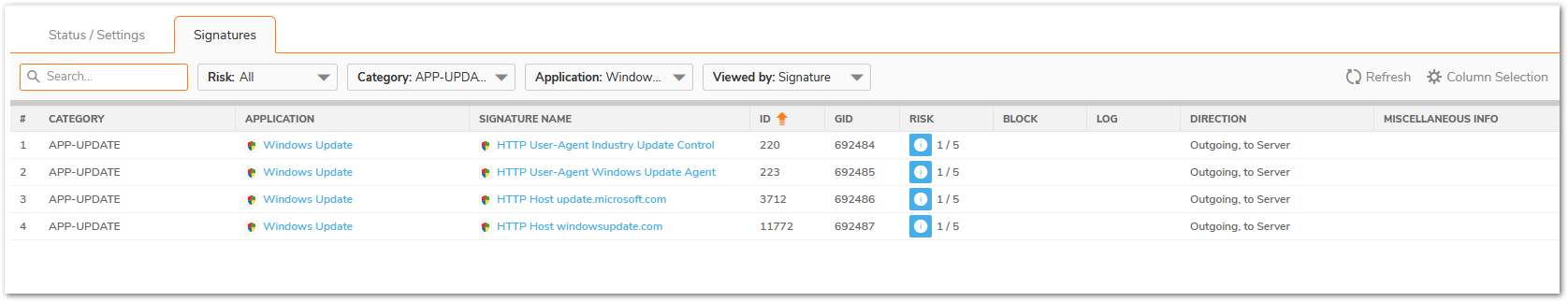

Under Signatures tab,select APP-UPDATE under Category;

From the drop-down under Application, select Windows updates.

From the Drop-down under Viewed by ,select Signature

Click on Configure

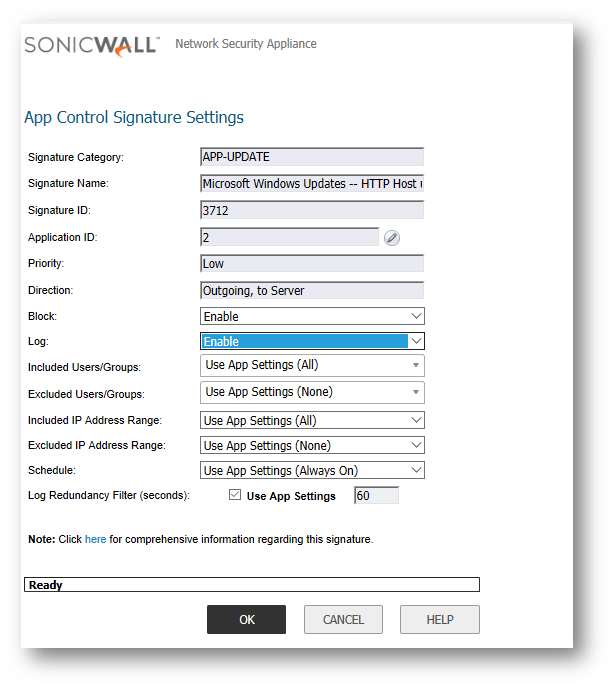

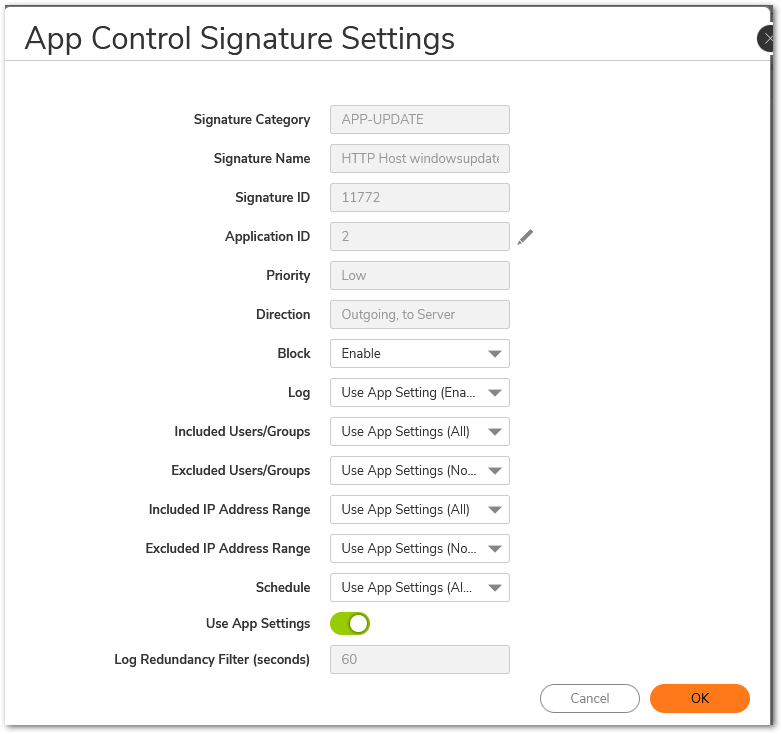

In the App Control Signature window, select Enable under the Block and Log fields.

Click on OK to save

Make sure that the app control is enabled on the Zone (LAN/WLAN) where you want to apply.

How to Test:On any computer which is behind LAN(172.27.61.8), try to update windows and that should fail.
The following App Control messages will be logged under Monitor | Logs | System logs when it detects any PC trying to update windows.

Resolution for SonicOS 6.5

This release includes significant user interface changes and many new features that are different from the SonicOS 6.2 and earlier firmware. The below resolution is for customers using SonicOS 6.5 firmware.

Feature/Application:

Block Microsoft Windows Updates using Application Control Advanced

Procedure:

Login to the SonicWall Management GUI.

Navigate to Manage > Rules > Advanced Application Control.

Check the box under Enable App Control  and click on the Accept button at the bottom to enable App Control.

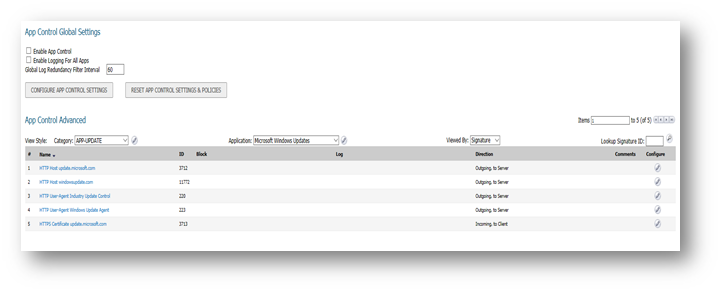

Under Advanced Application Control > View Style select APP-UPDATE under Category;

From the drop-down under Application, select Microsoft Windows updates.

From the Drop-down under Viewed by ,select Signature

Click on Configure

In the App Control Signature window, select Enable under the Block and Log fields.

Click on OK to save

Make sure that the app control is enabled on the Zone (LAN/WLAN) where you want to apply.

How to Test:

On any computer which is behind LAN(172.27.61.8), try to update windows and that should fail.
The following App Control messages will be logged under Investigate > Event Logs when it detects any PC trying to update windows.

Resolution for SonicOS 6.2 and Below

The below resolution is for customers using SonicOS 6.2 and earlier firmware. For firewalls that are generation 6 and newer we suggest to upgrade to the latest general release of SonicOS 6.5 firmware.

Feature/Application:

Block Microsoft Windows Updates using Application Control Advanced

Procedure:

Login to the SonicWall Management GUI.

Navigate to the Firewall > App Control Advanced page. In Gen5 TZ devices this page is under Security Services > App Control

Check the box under Enable App Control  and click on the Accept button at the top to enable App Control.

Under App Control Advanced > View Style select APP-UPDATE under Category;

From the drop-down under Application, select Microsoft Windows updates.

From the Drop-down under Viewed by ,select Signature

Click on Configure

In the App Control Signature window, select Enable under the Block and Log fields.

Click on OK to save

Make sure that the app control is enabled on the Zone (LAN) where you want to apply

How to Test:

On any computer which is behind LAN(172.27.61.8), try to update windows and that should fail.
The following App Control messages will be logged under Log > View when it detects any PC trying to update windows.
