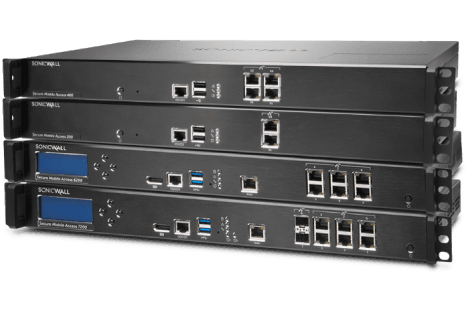

Secure Mobile Access (SMA) Appliances Products Compare

Deployment	210	410	500v	6210	7210	8200V
Operating system	v9.0 onwards	v9.0 onwards	v9.0 onwards	v12.1 onwards	v12.1 onwards	v12.1 onwards
Supported Hypervisors			VMware ESXi / Microsoft Hyper-V			VMware ESXi / Microsoft Hyper-V
Supported Public Cloud Platforms			AWS/Azure			AWS/Azure
Performance	210	410	500V	6210	7210	8200V
Concurrent users	Up to 200 users	Up to 400 users	250	2000	10000	5000
Max SSL/TLS throughput	560 Mbps	844 Mbps	265 Mbps	1.3 Gbps	5 Gbps	1.58 Gbps
Web Application Firewall	210	410	500V
Throughput	515 Mbps	672 Mbps	424 Mbps
Transactions per second (TPS)	600	900	300
Client Access	210	410	500V	6210	7210	8200V
Layer 3 tunnel
Split-tunnel and redirect-all
Always-On VPN
Auto ESP encapsulation
HTML5 (RDP, VNC,ICA, SSH, Telnet, Network Explorer)
Secure Network Detection (SND)
File browser (CIFS/NFS)
Citrix XenDesktop/XenApp
VMware View
On Demand tunnel
Chrome/Firefox extensions
CLI tunnel support
Mobile Connect (iOS, Android, Chrome, Win 10, Mac OSX)
Net Extender (Windows, Linux)
Connect Tunnel (Windows, Mac OSX, Linux)
Exchange ActiveSync
Mobile Access	210	410	500V	6210	7210	8200V
Per app VPN
App control enforcement
App ID validation
User Portal	210	410	500V	6210	7210	8200V
Branding
Customization
Localization
User defined bookmarks
Custom URL support
SaaS application support
Security	210	410	500V	6210	7210	8200V
FIPS 140-2
ICSA SSL-TLS
Suite B ciphers
Dynamic EPC interrogation
Role Based Access Control (RBAC)
Endpoint registration
Secure File Share (Capture ATP)
Endpoint quarantine
OSCP CRL validation
Cipher selection
PKI and client certificates
Geo IP filter
Botnet filter
Forward proxy
Reverse proxy
Authentication and Identity services	210	410	500V	6210	7210	8200V
SAML 2.0
LDAP, RADIUS
Kerberos (KDC)
NTLM
SAML Identity Provider (IdP)
Biometric device support
Face ID support for iOS
Chained authentication
Two factor Authentication (2FA)
Multi-factor Authentication (MFA)
One Time Passcode (OTP)
Common Access Card (CAC) support
X.509 certificate support
Captcha integration
Remote password change
Federated SSO
Formed-based SSO
Session persistence
Auto logon
Access Control	210	410	500V	6210	7210	8200V
Group AD
LDAP attributes
Geolocation policies
Continual endpoint monitoring
Management	210	410	500V	6210	7210	8200V
Management interface (ethernet)
Management interface (console)
HTTPS administration
SSH administration
SNMP MIBS
Syslog and NTP
Usage monitoring
Configuration rollback
Centralized management
Centralized reporting
Management REST APIs
Authentication REST APIs
RADIUS accounting
Scheduled tasks
Centralized session licensing
Event-driven auditing
Networking	210	410	500V	6210	7210	8200V
IPv6
Global load balancing
Server load balancing
TCP state replication
Cluster state failover
Active/passive high availability
Active/active high availability
Horizontal scalability
Single or multiple FQDNs
L3-7 smart tunnel proxy
L7 application proxy
Integration	210	410	500V	6210	7210	8200V
2FA mobile app support
EMM and MDM product support
SIEM product support
TPAM password vault
ESX hypervisor Support
Hyper V hypervisor Support
Licensing Options	210	410	500V	6210	7210	8200V
Subscription based license
Perpetual license with support
Web Application Firewall (WAF)
Spike licensing
Tiered licensing
Virtual assist
Appliance Specifications	210	410	500V	6210	7210	8200V
Form factor	1U	1U	n/a	1U	1U	n/a
Dimensions	16.92 x 10.23 x 1.75 in (43x26x4.5cm)	16.92 x 10.23 x 1.75 in (43x26x4.5cm)	n/a	17.0 x 16.5 x 1.75 in (43 x 41.5x 4.5 cm)	17.0 x 16.5 x 1.75 in (43 x 41.5x 4.5 cm)	n/a
Appliance weight	11 lbs (5 kgs)	11 lbs (5 kgs)	n/a	17.7 lbs (8 kgs)	18.3 lbs (8.3 kgs)	n/a
Encryption data acceleration (AES-NI)
Dedicated management port
SSL acceleration
Storage Compact Flash	4GB (Flash Memory)	4GB (Flash Memory)	n/a	2 x 1TB SATA; RAID 1	2 x 1TB SATA; RAID 1	n/a
Interfaces	(2) GB Ethernet, (2) USB, (1) console	(4) GB Ethernet, (2) USB, (1) console	n/a	(6)-port 1GE, (2)USB,(1) console	(6)-port 1GE, (2)-port 10Gb SFP+, (2) USB, (1) console	n/a
Memory	4GB	8GB	2GB	8GB DDR4	16GB DDR4	8GB
TPM chip			n/a			n/a
Processor	4 cores	8 cores	1 core	4 cores	4 cores	4 cores
MTBF (@ 25Ã‚Â°C or 77Ã‚Â°F) in hours	61815	60151	n/a	70127	129601	n/a
Power	Fixed power supply	Fixed power supply	n/a	Fixed power supply	Dual power supply, hot swappable	n/a
Input rating	100-240VAC, 50-60MHz	100-240VAC, 50-60MHz	n/a	100-240 VAC, 1.1 A	100-240 VAC, 1.79 A	n/a
Operations and Compliance	210	410	500V	6210	7210	8200V
Power consumption	26.9 W	31.9 W	n/a	77 W	114 W	n/a
Total heat dissipation	92 BTU	264 BTU	n/a	264 BTU	389 BTU	n/a
Environmental	WEEE, EU RoHS, China RoHS	WEEE, EU RoHS, China RoHS	n/a	WEEE, EU RoHS, Chin/ RoHS	WEEE, EU RoHS, Chin/ RoHS	n/a
Non-operating shock	110 g, 2 msec	110 g, 2 msec	n/a	110 g, 2 msec	110 g, 2 msec	n/a
Emissions	FCC, ICES, CE, C-Tick, VCCI; MIC	FCC, ICES, CE, C-Tick, VCCI; MIC	n/a	FCC, ICES, CE, C-Tick, VCCI; MIC	FCC, ICES, CE, C-Tick, VCCI; MIC	n/a
Safety	TUV/GS, UL, CE PSB, CCC, BSMI, CB scheme	TUV/GS, UL, CE PSB, CCC, BSMI, CB scheme	n/a	TUV/GS, UL, CE PSB, CCC, BSMI, CB scheme	TUV/GS, UL, CE PSB, CCC, BSMI, CB scheme	n/a
Operating temperature	0°C to 40°C	0°C to 40°C	n/a	0°C to 40°C	0°C to 40°C	n/a
				(32°F to 104° F)	(32°F to 104° F)
