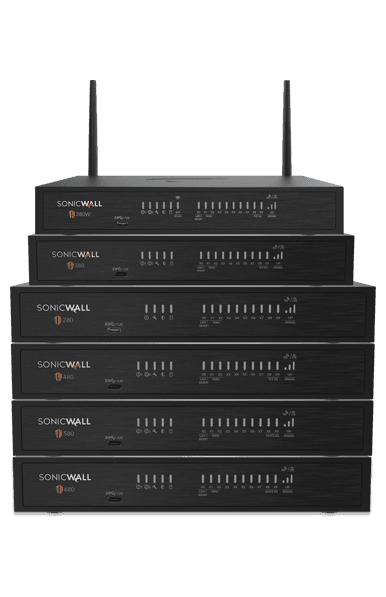

TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)

Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.

Overview

In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.

The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.

With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.

Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat.

Demo for Free

Features & Benefits

Advanced Threat Prevention with Deep Memory Inspection
  • Get lightning-fast performance with security processors optimized for speed
  • Gain a deeper level of threat prevention through Real-Time Deep Memory Inspection (RTDMI™)
  • Leverage shared threat intelligence for continuously updated security
  • Rely on a wide range of rich features in SonicWall’s powerful SonicOS operating system
Superior Performance
  • Leverage multi-core, parallel-processing hardware architecture
  • Achieve fast performance using gigabit and multi-gigabit Ethernet interfaces
  • Take advantage of single-pass, stream-based inspection
  • Inspect simultaneous network streams using deep packet inspection
Network Control and Flexibility
  • Get your firewall up and running quickly with Zero-Touch Deployment
  • Grow your distributed network while lowering costs with Secure SD-WAN
  • Power your PoE-enabled devices with integrated PoE/PoE+ support
  • Gain insight into and control over application usage across the network
Secure, Easy-to-Use Mobile Connectivity
  • Access resources behind the firewall remotely and securely using native 802.11ac wireless SSL VPN
  • Connect from virtually any operating system
  • Detect and remove hidden threats over the VPN connection

Compare SonicWall TZ Series Models

Select up to 3 to compare
TZ670
Read More
  • Firewall Inspection Throughput

    5.00 Gbps

  • Application Inspection Throughput

    3.0 Gbps

  • IPS Throughput

    3.0 Gbps

  • Threat Prevention Throughput

    2.5 Gbps

  • VPN Throughput

    2.0 Gbps

TZ670
Read More
  • Firewall Inspection Throughput

    5.00 Gbps

  • Application Inspection Throughput

    3.0 Gbps

  • IPS Throughput

    3.0 Gbps

  • Threat Prevention Throughput

    2.5 Gbps

  • VPN Throughput

    2.0 Gbps

  • Maximum Connections

    1,500,000

  • New Connections/Sec

    25,000

  • Ethernet Ports

    8x1-GbE, 2x10-GbE

  • USB Ports

    2 USB 3.0

  • SFP/SFP+

    X8/X9 SFP/SFP+ Ports

  • Expansion Slot

    1 Expansion Slot (Up to 256 GB)

  • Wi-Fi Option
  • Inbuilt LTE

    WWAN USB card support (5G/LTE/4G/3G)

  • Power over Ethernet (PoE) Support
TZ570/TZ570P/TZ570W
Read More
  • Firewall Inspection Throughput

    4.00 Gbps

  • Application Inspection Throughput

    2.5 Gbps

  • IPS Throughput

    2.5 Gbps

  • Threat Prevention Throughput

    2.00 Gbps

  • VPN Throughput

    1.8 Gbps

TZ570/TZ570P/TZ570W
Read More
  • Firewall Inspection Throughput

    4.00 Gbps

  • Application Inspection Throughput

    2.5 Gbps

  • IPS Throughput

    2.5 Gbps

  • Threat Prevention Throughput

    2.00 Gbps

  • VPN Throughput

    1.8 Gbps

  • Maximum Connections

    1,250,000

  • New Connections/Sec

    16,000

  • Ethernet Ports

    8x1GbE, 2x5GbE

  • USB Ports

    2 USB 3.0

  • SFP/SFP+

    X8/X9 SFP/SFP+ Ports

  • Expansion Slot

    1 Expansion Slot (Up to 256 GB)

  • Wi-Fi Option

    802.11a/b/g/n/ac Applies to TZ570W only

  • Inbuilt LTE

    WWAN USB card support (5G/LTE/4G/3G)

  • Power over Ethernet (PoE) Support

    5 ports (5 PoE or 3 PoE+) Applies to TZ570P only

TZ600/TZ600P
Read More
  • Firewall Inspection Throughput

    1.9 Gbps

  • Application Inspection Throughput

    1.8 Gbps

  • IPS Throughput

    1.2 Gbps

  • Threat Prevention Throughput

    800 Mbps

  • VPN Throughput

    1.1 Gbps

TZ600/TZ600P
Read More
  • Firewall Inspection Throughput

    1.9 Gbps

  • Application Inspection Throughput

    1.8 Gbps

  • IPS Throughput

    1.2 Gbps

  • Threat Prevention Throughput

    800 Mbps

  • VPN Throughput

    1.1 Gbps

  • Maximum Connections

    150,000

  • New Connections/Sec

    12,000

  • Ethernet Ports

    10x1-GbE

  • USB Ports

    2 USB

  • SFP/SFP+
  • Expansion Slot

    1 Expansion Slot

  • Wi-Fi Option
  • Inbuilt LTE
  • Power over Ethernet (PoE) Support

    4 ports (4 PoE or 4 PoE+) Applies to TZ600P only

TZ500/TZ500 W
Read More
  • Firewall Inspection Throughput

    1.4 Gbps

  • Application Inspection Throughput

    1.3 Gbps

  • IPS Throughput

    1.0 Gbps

  • Threat Prevention Throughput

    700 Mbps

  • VPN Throughput

    1.0 Gbps

TZ500/TZ500 W
Read More
  • Firewall Inspection Throughput

    1.4 Gbps

  • Application Inspection Throughput

    1.3 Gbps

  • IPS Throughput

    1.0 Gbps

  • Threat Prevention Throughput

    700 Mbps

  • VPN Throughput

    1.0 Gbps

  • Maximum Connections

    150,000

  • New Connections/Sec

    8,000

  • Ethernet Ports

    8x1-GbE

  • USB Ports

    2 USB

  • SFP/SFP+
  • Expansion Slot
  • Wi-Fi Option

    802.11a/b/g/n/ac Applies to TZ400 W only

  • Inbuilt LTE
  • Power over Ethernet
TZ400/TZ400 W
Read More
  • Firewall Inspection Throughput

    1.3 Gbps

  • Application Inspection Throughput

    1.2 Gbps

  • IPS Throughput

    900 Mbps

  • Threat Prevention Throughput

    600 Mbps

  • VPN Throughput

    900 Mbps

TZ400/TZ400 W
Read More
  • Firewall Inspection Throughput

    1.3 Gbps

  • Application Inspection Throughput

    1.2 Gbps

  • IPS Throughput

    900 Mbps

  • Threat Prevention Throughput

    600 Mbps

  • VPN Throughput

    900 Mbps

  • Maximum Connections

    150,000

  • New Connections/Sec

    6,000

  • Ethernet Ports

    7x1-GbE

  • USB Ports

    1 USB

  • SFP/SFP+
  • Expansion Slot

    N/A

  • Wi-Fi Option

    "802.11a/b/g/n/ac Applies to TZ400 W only "

  • Inbuilt LTE
  • Power over Ethernet (PoE) Support
TZ350/TZ350 W
Read More
  • Firewall Inspection Throughput

    1.0 Gbps

  • Application Inspection Throughput

    600 Mbps

  • IPS Throughput

    400 Mbps

  • Threat Prevention Throughput

    335 Mbps

  • VPN Throughput

    430 Mbps

TZ350/TZ350 W
Read More
  • Firewall Inspection Throughput

    1.0 Gbps

  • Application Inspection Throughput

    600 Mbps

  • IPS Throughput

    400 Mbps

  • Threat Prevention Throughput

    335 Mbps

  • VPN Throughput

    430 Mbps

  • Maximum Connections

    100,000

  • New Connections/Sec

    6,000

  • Ethernet Ports

    5x1-GbE

  • USB Ports

    1 x USB

  • SFP/SFP+
  • Expansion Slot
  • Wi-Fi Option

    "802.11a/b/g/n/ac Applies to TZ350 W only "

  • Inbuilt LTE
  • Power over Ethernet
TZ300/TZ300 W
Read More
  • Firewall Inspection Throughput

    750 Mbps

  • Application Inspection Throughput

    375 Mbps

  • IPS Throughput

    300 Mbps

  • Threat Prevention Throughput

    235 Mbps

  • VPN Throughput

    300 Mbps

TZ300/TZ300 W
Read More
  • Firewall Inspection Throughput

    750 Mbps

  • Application Inspection Throughput

    375 Mbps

  • IPS Throughput

    300 Mbps

  • Threat Prevention Throughput

    235 Mbps

  • VPN Throughput

    300 Mbps

  • Maximum Connections

    100,000

  • New Connections/Sec

    5,000

  • Ethernet Ports

    5x1-GbE

  • USB Ports

    1 x USB

  • SFP/SFP+
  • Expansion Slot
  • Wi-Fi Option

    802.11a/b/g/n/ac Applies to TZ300 W only

  • Inbuilt LTE
  • Power over Ethernet (PoE) Support

    2 ports (2 PoE or 1 PoE+)

SOHO250/SOHO 250W
Read More
  • Firewall Inspection Throughput

    600 Mbps

  • Application Inspection Throughput

    275 Mbps

  • IPS Throughput

    250 Mbps

  • Threat Prevention Throughput

    200 Mbps

  • VPN Throughput

    200 Mbps

SOHO250/SOHO 250W
Read More
  • Firewall Inspection Throughput

    600 Mbps

  • Application Inspection Throughput

    275 Mbps

  • IPS Throughput

    250 Mbps

  • Threat Prevention Throughput

    200 Mbps

  • VPN Throughput

    200 Mbps

  • Maximum Connections

    50,000

  • New Connections/Sec

    3,000

  • Ethernet Ports

    5x1-GbE

  • USB Ports

    1 x USB

  • SFP/SFP+
  • Expansion Slot
  • Wi-Fi Option

    "802.11a/b/g/n Applies to SOHO 250 W only "

  • Inbuilt LTE
  • Power over Ethernet

Security Services & Management

SonicWall Advanced Gateway Security Suite (AGSS) integrates a wide range of network security services into a convenient, affordable package. AGSS is available as an add-on service for all physical and virtual SonicWall firewalls, including our NSsp, NSa, TZ and NSv Series to protect against the most advanced and unknown threats.

Features:
  • Complete network security solution that includes the multi-engine Capture Advanced Threat Protection (ATP) cloud sandbox service with RTDMI
  • ICSA-certified gateway anti-virus and anti-spyware protection
  • Cutting-edge IPS technology
  • Application intelligence and control
  • Content filtering
  • 24×7 support with firmware updates and hardware replacement
Learn More

Mitigate the risk of zero-day threats with SonicWall Capture Advanced Threat Protection (ATP) sandbox, a cloud-based service that detects and blocks unknown threats at the gateway until a verdict is rendered.

This service is the only advanced threat detection offering that combines multi-layer sandboxing, including SonicWall Real-Time Deep Memory Inspection (RTDMI™), full system emulation and virtualization techniques, to analyze suspicious code behavior. This powerful combination detects more threats than single-engine sandbox solutions, which are compute-environment specific and susceptible to evasion.

Learn More

SonicWall Content Filtering Service (CFS), running on SonicWall next-generation firewalls (NGFWs) is a powerful protection and productivity solution that delivers unequaled content filtering enforcement for educational institutions, businesses, libraries and government agencies. Using SonicWall CFS, organizations have control over the websites students, faculty and employees can access.

Learn More

SonicWall Comprehensive Anti-Spam Service offers small- to medium-sized businesses comprehensive protection from spam and viruses, with instant deployment over existing SonicWall firewalls. The service speeds deployment, eases administration and reduces overhead by consolidating solutions, providing one-click anti-spam services, with advanced configuration.

The anti-spam service offers complete inbound anti-spam, anti-phishing, anti-malware protection and features, IP-reputation lookup, advanced content management, denial of service prevention, full quarantine and customizable per-user junk summaries.

Learn More

Accessories

Order replacement parts and upgrades, including power supplies and rack-mount kits, for your SonicWall TZ series firewall.

SonicWall TZ Series USB Security Clamp TZ300/TZ400/TZ500/TZ600

SKU: 01-SSC-0744

How to Buy
SonicWall TZ300 POE FRU Power Supply

SKU: 02-SSC-0613

How to Buy
SonicWall TZ500 Series Rack Mount Kit

SKU: 01-SSC-0438

How to Buy
SonicWall TZ400 Series Rack Mount Kit

SKU: 01-SSC-0525

How to Buy
SonicWall TZ350, TZ300 Series Rack Mount Kit

SKU: 01-SSC-0742

How To Buy
SonicWall TZ600 POE FRU Power Supply

SKU: 02-SSC-0614

How To Buy
SonicWall TZ600 Rack Mount Kit

SKU: 01-SSC-0225

How To Buy
SonicWall TZ600 FRU Power Supply

SKU: 01-SSC-0280

How To Buy
SonicWall TZ500 Series FRU Power Supply

SKU: 01-SSC-0437

How To Buy
SonicWall TZ400, TZ300, SOHO Series FRU Power Supply

SKU: 01-SSC-0709

How To Buy

Centrally Manage Your Firewalls with Network Security Manager

SonicWall Network Security Manager (NSM) gives you everything you need for comprehensive firewall management.

  • Onboard and manage dozens or hundreds of firewalls centrally from one interface
  • Deploy and administer firewalls remotely with Zero-Touch Deployment
  • Simplify set-up with configuration wizards
  • Identify and remedy security risks through detailed analytics and intuitive dashboards
  • Quickly and easily deploy new firewalls using custom configuration templates
  • Federate security policies globally
  • Automate audit-ready reporting
Learn More

Secure SD-Branch

SonicWall Secure Software-Defined Branch (SD-Branch) improves user experience and secures connectivity at branch offices. This integrated solution combines SD-LAN, SD-WAN and security for distributed enterprises, allowing you to take advantage of cheaper connectivity between HQ and branches, safeguard BYOD and SaaS applications, and scale easily with the rise in mobile devices.

Learn More

Try a Live Demo

Explore the features and interface of the SonicWall TZ series firewall in a functional live demo.

See For Yourself

Resources

Solution Brief
Choosing the Best Firewall for SMB and Branch Office
Case Study
Middle East Cables Run Towards Modern Security
Executive Brief
The Dark Side of Encryption

Customer Testimonials

“Simply, they have made our lives easier. We are easily able to configure and deploy a device without having to spend hours to get everything right. When it comes time to rotate out a device, the ability to pull a config from the existing device and place it on the new device saves our time, as well as money for our clients.”

Shane Eldredge
Network Administrator, Firefly
Read Customer Stories

This data was sourced directly from a verified user of SonicWall Inc. by TechValidate.

"SonicWall’s new TZ series has much better throughput at a better price point. It made it easy for me to get them into clients offices and help secure their networks."

Curtis Elder Executive
Professional Company Management
Read Customer Stories

This data was sourced directly from a verified user of SonicWall Inc. by TechValidate.

"Provided security and no known issues over several years of use. Ease of management and configuration via web interface is a plus."

Scott Todaro
IT Director, YMCA of the North Shore
Read Customer Stories

This data was sourced directly from a verified user of SonicWall Inc. by TechValidate.

"They have been able to connect us together over remote sites and provide us a level of security that we have been needing against outside threats."

Nathan Bergman
System Administrator, Flint Communications
Read Customer Stories

This data was sourced directly from a verified user of SonicWall Inc. by TechValidate.

"We set up and take down remote sites frequently. SonicWall TZ firewalls allow us to do that in a very efficient manner knowing that our remote sites are as secure as our corporate data center."

Brian Cork
Chief Information Officer, Achen-Gardner
Read Customer Stories

This data was sourced directly from a verified user of SonicWall Inc. by TechValidate.

"We bundle SonicWall appliances as part of our ClearPath solution. We count on the firewall features to secure access to our management LAN."

Senior IT Architect, Fortune 500 Computer Services Company
Read Customer Stories

This data was sourced directly from a verified user of SonicWall Inc. by TechValidate.

"You install them, configure them, and leave them alone. Job done."

Rod Armstrong
Manager of Asset Management Technical Services, City of Courtenay
Read Customer Stories

This data was sourced directly from a verified user of SonicWall Inc. by TechValidate.

SonicWall
Capture More
Fear Less
Trace:957d8e7b1ca3887eccd6a78a7ba67e6e-76
