TZ Entry Level Firewall Series

Get high-speed threat prevention in a flexible, integrated security solution with the SonicWall TZ Series. Designed for small networks and distributed enterprises with remote and branch locations, the TZ Series offers five different models that can be tuned to meet your specific needs. Advanced networking and management features such as Secure SD-WAN and Zero-Touch Deployment make it easy to bring up new sites as you need. Add optional capabilities including PoE/PoE+ support and 802.11ac WiFi to create a unified security solution that protects your network and data from the latest threats over wired and wireless connections.

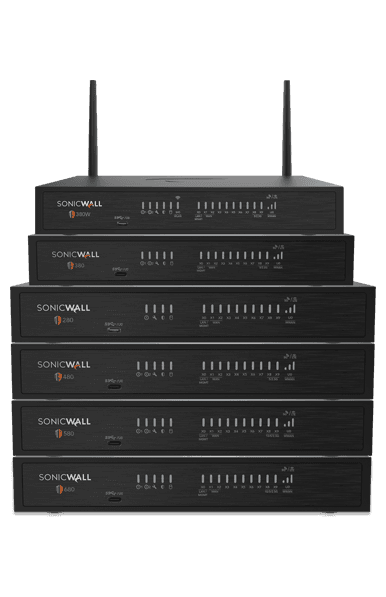

Entry Level Product Image

A high-performance integrated threat prevention platform for small/medium organizations and distributed enterprises

Get high-speed threat prevention in a flexible, integrated security solution with the SonicWall TZ Series. Designed for small networks and distributed enterprises with remote and branch locations, the TZ Series offers five different models that can be tuned to meet your specific needs. Advanced networking and management features such as Secure SD-WAN and Zero-Touch Deployment make it easy to bring up new sites as you need. Add optional capabilities including PoE/PoE+ support and 802.11ac WiFi to create a unified security solution that protects your network and data from the latest threats over wired and wireless connections.

Legend: S — Standard,  O — Optional,  N — Not Available

_productName SOHO TZ300 TZ400 TZ500 TZ600
Deep Packet Inspection Firewall TotalSecure Firewall Overview S S S S S
Stateful Packet Inspection Firewall TotalSecure Firewall Overview S S S S S
Unlimited File Size Protection TotalSecure Firewall Overview S S S S S
Protocols Scanned TotalSecure Firewall Overview S S S S S
Application Intelligence and Control Security Services Included S S S S S
Intrusion Prevention Service Security Services Included S S S S S
Gateway Anti-Virus and Anti-Spyware Security Services Included S S S S S
Content & URL Filtering (CFS) Security Services Included S S S S S
SSL Inspection (DPI SSL) Security Services Included S S S S S
Content Filtering Client (CFC)1 Security Services Included O O O O O
Analyzer Reporting1 Security Services Included O O O O O
Capture Advance Threat Protection1 Security Services Included N O O O O
Enforced Client Anti-Virus and Anti-Spyware1 Security Services Included O O O O O
24x7 Support Security Services Included S S S S S
Interfaces Firewall General 5x1-GbE, 1 USB, 1 Console 5x1-GbE, 1 USB, 1 Console 7x1-GbE, 1 USB, 1 Console 8x1-GbE, 2 USB, 1 Console 10x1-GbE, 2 USB, 1 Console, 1 Expansion Slot
Management Firewall General CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs
Nodes Supported Firewall General Unrestricted Unrestricted Unrestricted Unrestricted Unrestricted
Site-to-Site VPN Tunnels Firewall General 10 10 20 25 50
IPSec VPN Clients (Maximum) Firewall General 1 (5) 1 (10) 2 (25) 2 (25) 2 (25)
SSL VPN Licenses (Maximum) Firewall General 1 (10) 1 (50) 2 (100) 2 (150) 2 (200)
VLAN Interfaces Firewall General 25 25 50 50 50
Wireless Controller Firewall General S S S S S
WWAN Failover (4G/LTE) Firewall General S S S S S
Network Switch Management Firewall General N S S S S
Firewall Inspection Throughput2 Firewall/VPN Performance 300 Mbps 750 Mbps 1.3 Gbps 1.4 Gbps 1.5 Gbps
Threat Prevention Throughput3 Firewall/VPN Performance 50 Mbps 100 Mbps 300 Mbps 400 Mbps 500 Mbps
Application Inspection Throughput3 Firewall/VPN Performance - 300 Mbps 900 Mbps 1.0 Gbps 1.1 Gbps
IPS Throughput3 Firewall/VPN Performance 100 Mbps 300 Mbps 900 Mbps 1.0 Gbps 1.1 Gbps
Anti-Malware Inspection Throughput3 Firewall/VPN Performance 50 Mbps 100 Mbps 300 Mbps 400 Mbps 500 Mbps
IMIX Throughput Firewall/VPN Performance 60 Mbps 200 Mbps 500 Mbps 700 Mbps 900 Mbps
DPI SSL Throughput Firewall/VPN Performance 15 Mbps 45 Mbps 100 Mbps 150 Mbps 200 Mbps
VPN Throughput4 Firewall/VPN Performance 100 Mbps 300 Mbps 900 Mbps 1.0 Gbps 1.1 Gbps
Maximum Connections (SPI) Firewall/VPN Performance 10,000 50,000 100,000 125,000 150,000
Maximum Connections (DPI) Firewall/VPN Performance 10,000 50,000 90,000 100,000 125,000
Maximum Connections (DPI SSL) Firewall/VPN Performance 100 500 500 750 750
New Connections/Sec Firewall/VPN Performance 1,800 5,000 6,000 8,000 12,000
Logging Features Analyzer, Local Log, Syslog Analyzer, Local Log, Syslog Analyzer, Local Log, Syslog Analyzer, Local Log, Syslog Analyzer, Local Log, Syslog
Network Traffic Visualization Features S S S S S
Netflow/IPFIX Reporting Features N S S S S
SNMP Features S S S S S
Authentication Features LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Dynamic Routing Features BGP, OSPF, RIPv1/v2, static routes, policy-based routing BGP, OSPF, RIPv1/v2, static routes, policy-based routing BGP, OSPF, RIPv1/v2, static routes, policy-based routing BGP, OSPF, RIPv1/v2, static routes, policy-based routing BGP, OSPF, RIPv1/v2, static routes, policy-based routing
Secure SD-WAN Features S S S S S
Single Sign-on (SSO) Features S S S S S
Voice over IP (VoIP) Security Features S S S S S
Interface to Interface Scanning Features S S S S S
PortShield Security Features S S S S S
Link Redundancy Features S S S S S
Policy-based Routing Features S S S S S
Route-based VPN Features S S S S S
Dynamic Bandwidth Management Features S S S S S
Stateful High Availability Features N N N O O
Multi-WAN Features S S S S S
Load Balancing Features S S S S S
Object-based Management Features S S S S S
Policy-based NAT Features S S S S S
Inbound Load Balancing Features S S S S S
IKEv2 VPN Features S S S S S
TLS/SSL/SSH Decryption and Inspection Features S S S S S
SSL Control Features S S S S S
Auto-provision VPN Features S S S S S
Biometric Authentication Features S S S S S
DNS Proxy Features S S S S S
Hardware Failover Features N Active/Standby Active/Standby Active/Standby with stateful synchronization Active/Standby with stateful synchronization
Standards Integrated Wireless 802.11a/b/g/n (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS 802.11a/b/g/n/ac (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS 802.11a/b/g/n/ac (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS 802.11a/b/g/n/ac (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS -
Frequency bands5 Integrated Wireless 802.11a: 5.180-5.825 GHz 802.11a: 5.180-5.825 GHz 802.11a: 5.180-5.825 GHz 802.11a: 5.180-5.825 GHz --
" Integrated Wireless 802.11b/g: 2.412-2.472 GHz 802.11b/g: 2.412-2.472 GHz 802.11b/g: 2.412-2.472 GHz 802.11b/g: 2.412-2.472 GHz
" Integrated Wireless 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz
" Integrated Wireless -- 802.11ac: 2.412-2.472 GHz, 5.180-5.825 GHz 802.11ac: 2.412-2.472 GHz, 5.180-5.825 GHz 802.11ac: 2.412-2.472 GHz, 5.180-5.825 GHz --
Operating Channels Integrated Wireless 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4
" Integrated Wireless 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) --
" Integrated Wireless 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 --
" Integrated Wireless 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 --
" Integrated Wireless -- 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 --
Transmit output power Integrated Wireless Based on the regulatory domain specified by the system administrator Based on the regulatory domain specified by the system administrator Based on the regulatory domain specified by the system administrator Based on the regulatory domain specified by the system administrator
Transmit power control Integrated Wireless Supported Supported Supported Supported -
Data rates supported Integrated Wireless 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel -
" Integrated Wireless 802.11b: 1,2,5.5,11 Mbps per channel 802.11b: 1,2,5.5,11 Mbps per channel 802.11b: 1,2,5.5,11 Mbps per channel 802.11b: 1,2,5.5,11 Mbps per channel --
" Integrated Wireless 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel --
" Integrated Wireless 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel --
" Integrated Wireless -- 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, --
" Integrated Wireless -- 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel --
Modulation technology spectrum Integrated Wireless 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) -
" Integrated Wireless 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11b: Direct Sequence Spread Spectrum (DSSS) --
" Integrated Wireless 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) --
" Integrated Wireless 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) --
" Integrated Wireless -- 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM) 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM) 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM) --
1. Services must be purchased separately.
2. Threat Prevention/GatewayAV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple flows through multiple port pairs. Threat Prevention throughput measured with Gateway AV, Anti-Spyware, IPS and Application Control enabled.
3. Full DPI/Gateway AV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple flows through multiple port pairs. Threat Prevention throughput measured with Gateway AV, Anti-Spyware, IPS and Application Control enabled.
4. VPN throughput measured using UDP traffic at 1280 byte packet size adhering to RFC 2544.
5. All TZ integrated wireless models can support either 2.4GHz or 5GHz band. For dual-band support, please use SonicWall's wireless access point products.
*Future use. All specifications, features and availability are subject to change.
Close Overview
Advanced Threat Prevention Image

Advanced Threat Prevention

  • Block more attacks with Real-Time Deep Memory Inspection (RTDMI) & Reassembly-Free Deep Packet Inspection (RFDPI)
  • Prevent advanced threats with cloud-based and on-box threat prevention
  • Decrypt and inspect TLS/SSL-encrypted traffic in real time
  • Inspect for threats on all ports and protocols without file size limitations

Learn More >

SonicWall TZ Series Firewalls Video Data Sheet

Whether you have a small business or a large distributed enterprise, the SonicWall TZ Series has a next generation firewall that fits your organization's specific network security needs

High-speed Performance Image

High-speed Performance

  • Leverage multi-core parallel-processing hardware architecture
  • Achieve fast performance using Gigabit Ethernet interfaces
  • Take advantage of single-pass stream-based inspection
  • Inspect simultaneous network streams using deep packet inspection
  • Add integrated 802.11ac wireless
Network Control and Flexibility Image

Network Control and Flexibility

  • Access a wide range of networking features in SonicWall's powerful SonicOS operating system
  • Grow your distributed network while lowering costs with Secure SD-WAN
  • Power your PoE-enabled devices with integrated PoE/PoE+ support
  • Gain insight into and control over application usage across the network
  • Segment your network with VLANs

Learn More >

Secure, Easy-to-Use Mobile Connectivity Image

Secure, Easy-to-Use Mobile Connectivity

  • Access resources behind the firewall remotely and securely using native SSL VPN
  • Connect from virtually any operating system - Apple® iOS, Google® Android, Windows® 8.1, Mac OS® X, Kindle Fire and Linux
  • Scan for and remove hidden threats over the VPN connection

Learn More >

SonicWall Capture Cloud Platform Image

SonicWall Capture Cloud Platform

  • Take advantage of threat intelligence consolidated from more than one million SonicWall sensors
  • Stay protected in real time with automatically delivered signatures developed by SonicWall Capture Labs researchers
  • Continually access the Capture Cloud Platform for millions of malware signatures
  • Utilize single pane of glass management, licensing, reporting and analytics through the Capture Cloud Platform

Learn More >
